MAC 4.0 MOBILE BASIC

SYSTEM DESCRIPTION

The new air sampler MAC 4.0 economical air sampler was especially developed for the clean room, food and similar industries as well as similar industries. Microbiologically contaminated air may influence the quality of food and beverages and thus has a direct impact on the deterioration and shelf live of these products. To control and to improve these conditions is our mission.

The MAC 4.0 uses standard standard Petri dishes, is easy to handle, compact and has a favourable price. An electronic speed control guarantees for an accurate flow rate.

TECHNICAL SPECIFICATIONS

  • Airflow 100 litres/minute
  • Rechargeable battery, autonomy approx. 2h
  • Body made from anodized aluminium
  • Sterilisable sampling head
  • Current disinfecting agents can be used for cleaning
  • Calibration with inbuild Anemometer

DIMENSIONS

  • Height:: 7 cm
  • Diameter: 11 cm
  • Length: 15,5 cm
  • Width: 11 cm
  • Weight with recharge-battery: approx. 1 kg

Operation Mode



Environmental Control

  • Temperature
  • Humidity
  • Barometric Pressure
  • Altitude



Battery capacity

D50 Value Verification



50 % deposition rate

  • 400 holes
  • Aspiration 100 l/min
  • Hole diameter 0,7
  • 50 % deposition rate
  • Optimized d50 value for 1,6 µm

According current standard the d50 value of 1,6 µm offers the best results for an efficient Air Monitoring System

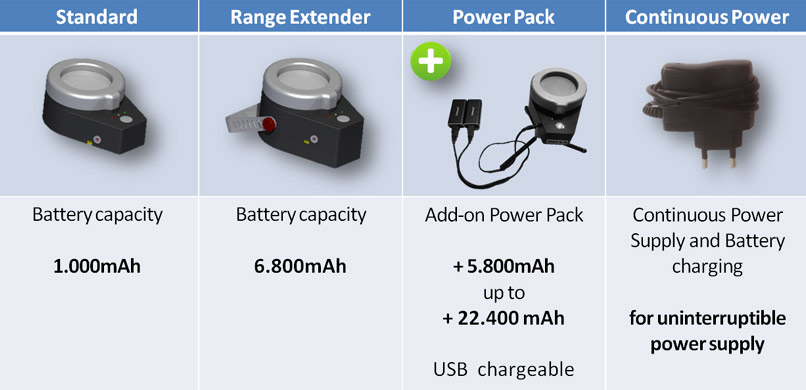

ACCESSORIES

  • Battery capacity
    1.000mAh

  • Battery capacity
    6.800mAh

  • Exhaust Collect
    Exhaust will be collected and guide the exhaust away

  • WLAN Printer

  • Suitcase for MAC 4.0
    Printer and Charger

  • Tritop for MAC 4.0 and MAC 4.0 Range Extender

  • Dust Cover

  • Adapter consists of dome and differential pressure meter

  • Attachement hole 3/8” and adpater for 1/4“ ans 3/8″

  • WLAN Range Extender (Repeater up to 20 m)

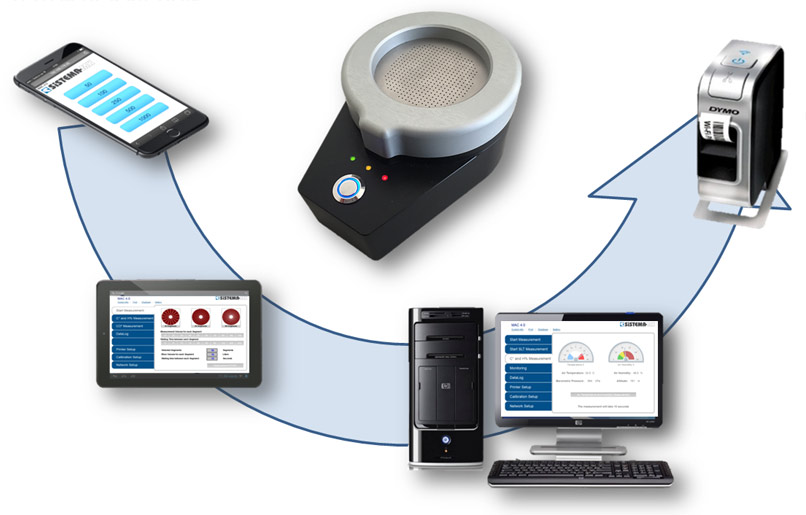

  • Tablet Hardware and Software

  • Interface and App for Iphone and Android Phone
