SYSTEM DESCRIPTION



The Apollo.32 (ap.32) ultrapure cleanroom fog machine uses liquid nitrogen and deionized water or wfi water to generate about 5 cubic meters of ultra pure fog per minute with a fog density of 533 ml per minute during a 75 minute operating cycle. The fog output is adjustable from 2-5 cubic meters per minute.

The ap.32 provides fog of highest purity, cleanliness and pure paper white density being unmatched by any other clean room suitable fog generating technology in the market. The ap.32 complies with iso 14644-3 visual airflow requirements, semiconductor clean room guidelines, usp 797 insitu airflow analysis to provide 3d airflow modeling in clean rooms, iso suites, sterile rooms and medical rooms.



TECHNICAL PRINCIPLE



High purity fog basing on de-ionized water (demiwater) or water for injection (wfi) is generated by mixing hot water with liquid nitrogen using a unique mixing process. The generated ultrapure water fog is neutrally buoyant, non-contaminating and highly visible (pure paper white fog).



TYPICAL APPLICATIONS

  • Large and very large scale continious air flow visualization and/or mapping studies in clean rooms and on process tools according to ISO 14644-3 Annex B7
  • Visualization of unwanted gas emission locations and dead zones
  • Supports analysis for pharmaceutical UPS 797 guidelines and airflow visualization
  • Supports NSF 49 national safety foundation and the future UPS 800 hazardous drug compounding for airflow visualization
  • Supports airflow visualization test for semiconductor semi-standards guidelines
  • Tracking routes of unwanted air flow infiltration into clean rooms
  • Exhaust and ventilation studies around wafer handling systems
  • Air balance studies in pharmaceutical suites and clean rooms
  • Containment transport studies on process tools and complete process sections and lines
  • Optimization of equipment locations in order to minimize containment transport to critical areas
  • Finding unsuspected particulate and gaseous containment sources
  • Tracking routes of air infiltration into cleanrooms
  • Pressure balancing (rooms and spaces)
  • Operators trainings



AP.32 BENEFITS

  • Adjustable, ultra pure airflow visualization to describe direction, velocity and patterns in airflow
  • Modular design for simple operation and maintenance
  • Direct fogger control or remote control by wireless key fob to operate behind a closed wall or closed area
  • No contamination created, no contamination left behind
  • No cleanup of any kind after fog visualization
  • Superb 3d airflow modeling capabilities with high density fog
  • Very low fog exit pressure, no exit turbulence as fog enters airflow
  • Compact, transportable, shipping case
  • Fog stream output and fog rake output
  • For use in sterile rooms, iso suites and clean rooms
  • High unmatched volume and density of fog provides the best airflow visualization of any fogger in the market





TECHNICAL SPECS OF THE APOLLO.32 (AP.32)

Fog durationup to 75 minutes
Fog volume outputup to 5 cubic meters per minute with adjustable output from 2-5 cubic meters/min
Total fog volumeapprox. 410 cubic meters, ultrapure fog during 75 minute cycle
Fog density (ml/minute) supportsup to 533 ml per minute converted to ultrapure fog
Visible fog distance
visible air flow distance
10 to 12 m visible air flow distance
Fog typeultrapure fog using LN2 + di-water or wfi-water
Class of clean room useclass 1 to 10,000
Compatible guidelinesclean rooms, sterile rooms, iso suites, medical rooms
Type of roomclean rooms, sterile rooms, iso suites, medical rooms
Water boiler volume4,80 Liters
LN2 dewar volume35 Liters
Method of operationdirect touch pad control or remote wireless control
Method of movementrolling ss enclosure
Liquid weight28.14 kg ln2 and 4.8 kg di-water
Standard power requirements220 VAC, 50/60 Hz, 15 A
Optional power110 VAC, 50/60 Hz, 15 A
Dimensions1.095 mm * 540 mm * 766 mm
Full weight77 kg



ACCESSORIES

  • Straight pattern fog lance transaprent
    1.300 x 80 mm (L x ø)

  • T-pattern fog lance transaprent
    1.300 x 80 mm (L x ø)

  • 5 m flexible tube extra long
    (L x ø: 5.000 x 80 mm)

  • 10 m flexible tube extra long
    (L x ø: 5.000 x 80 mm)

  • Throttle valve w/handle 60 (ø 60 mm) for a 0-100 % performance adjustment for adjustment of fog intensity, ouput and speed

  • Tube to tube connector coupling single tubings

  • 250 mm broad output nozzle mounted to tubing for generation of broad fog patterns and waterfall patterns

  • 500 mm broad output nozzle mounted to tubing for generation of broad fog patterns and waterfall patterns

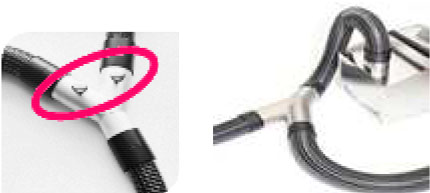

  • Y-pattern tube to tube connector for 1 in 2 tubing arangements, tube extensions or coupling of two systems

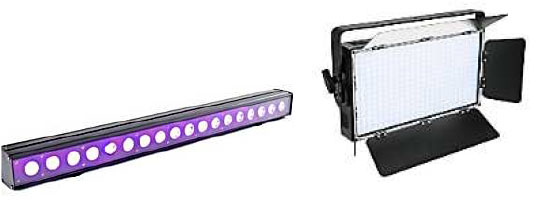

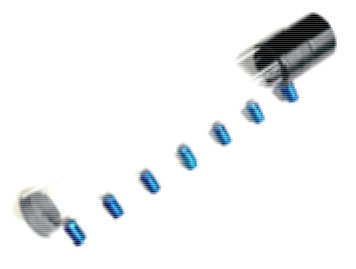

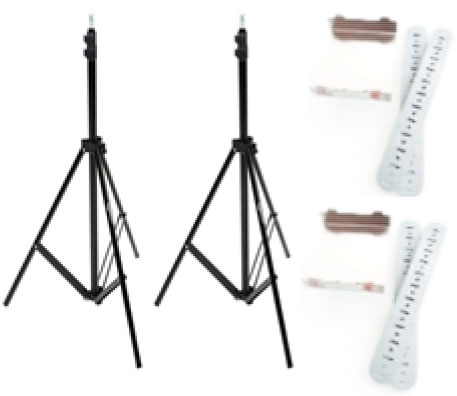

  • LED luminaire with adjustable spot size and two special multi lense arrays for creating rectangular or line patterns*

  • RF remote control for all major system functions and modes**
