AIRFLOW MAPPER AFM35-NEO

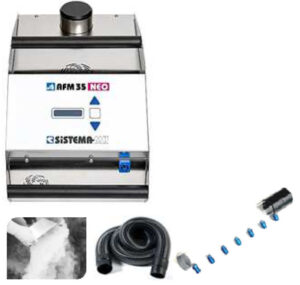

AIR FLOW MAPPING SYSTEM AFM35 NEO

New fogger uses a high performance  ultrasonic module of 35 piezoelectric ceramics to generate in its class unmatched of visible air flows for smoke studies in clean rooms, medical rooms, iso suites, barrier isolators, fume hoods and similar applications in clean rooms.

AIR FLOW MAPPING SYSTEM AFM35 NEO



  • New better model of fog generator
  • Dense paper white pure fog
  • 5 to 7 m of visible air flows

AIR FLOW MAPPING SYSTEM AFM35 NEO

New fogger uses a high performance  ultrasonic module of 35 piezoelectric ceramics to generate in its class unmatched of visible air flows for smoke studies in clean rooms, medical rooms, iso suites, barrier isolators, fume hoods and similar applications in clean rooms.

AIR FLOW MAPPING SYSTEM AFM35 NEO



  • New better model of fog generator
  • Dense paper white pure fog
  • 5 to 7 m of visible air flows

Background of application



Cleanrooms are dynamic systems. People and goods are constantly in motion.

Installations, production lines and  machines do require periodical adjustment to the production of different products. Acc. To the relevant standard ISO 14644-3 the  operators of cleanrooms are obliged to give periodically evidence of the in situe air flow situation by an air flow  mapping supported by high purity air flow mappers (clean room foggers).

The AFM35-NEO cleanroom fogger uses a high performance  ultrasonic module of 35 piezoelectric ceramics to generate in its  class unmatched 1,25 cubic meters of pure fog per minute with 170 ml of fog density per minute to provide 5 to 7 m of visible air flows for smoke studies in clean rooms, medical rooms, iso suites, barrier isolators, fume hoods and similar applications in clean rooms.

The AFM35-NEO is the only ultrasonic based air flow mapper / clean room fogger that competes in fog volume and fog density (pure white) with any available ln2 based clean room fogger this at the only exception of sistema’s ln2 fog machine Apollo.35 (ap.35). Yet its unique criterion in this competition is that the AFM35-NEO (only needs di water or wfi water to produce this higher volume of white dense pure fog and not a media of two components like LN2 and di water as with the ln2 foggers).



FOG OUTPUT CHARACTERISTICS

  • Dense paper white pure fog
  • Cycle time of 80 min of which 50 min with pure white fog
  • Sufficient in volume for a volume split into two hoses both providing pure white fog simultaneously
  • Atomizing up to unmatched 170 ml of di-water per minute into 1,25 cubic meters of white fog per min.
  • 5 to 7 m of visible air flows
  • Highest fog ouput rate of all ultrasonic piezoelectric based clean room foggers in market



TYPICAL APPLICATIONS

  • Air Flow Visualization and Tracking in Cleanrooms
  • Containment Transport Studies on Process Tools
  • Optimization of Equipment Locations
  • Detection of unsuspected particulate and gaseous Containment Sources
  • Tracking Routes of Air Infiltration into Cleanrooms
  • Pressure Balancing (rooms and spaces)
  • Operators Trainings



SPECS AND FEATURES

  • Casing and tank in electropolished stainless steel
  • Dimensions of (l x h x w) 571 x 293 x 325 mm
  • Net weight of 20 kgs
  • Tank capacity of 10 l
  • Cycle time of 80 min of which 50 min are with pure white fog
  • Ultrasonic module of 35 piezoelectric ceramic discs
  • 0 — 100 % adjustment of fog intensity and density
  • Micro fan, 24 V, ip 68
  • Fog outlet ø of 80 mm
  • Dotmatrix display for indication of operating state and all operating functions
  • Electronical water fill level survey via 3 capacitive sensors
  • Temperature survey function
  • Elapsed time meter
  • Redundancy function enabling the system functionality either with 3 or 2 or 1 ultrasonic blocs in case of
  • Single bloc failure
  • Soft start electronic
  • Self monitoring functionality
  • Coming with standard accessories including
  • 90 – 264 VAC wide range power supply covering 90 . . . 264  VAC, 47 . . . 63 HZ, 5 A @ 230 VAC, 3 a @ 115 VAC
  • Buffer functionality in case of unstable power supply grids

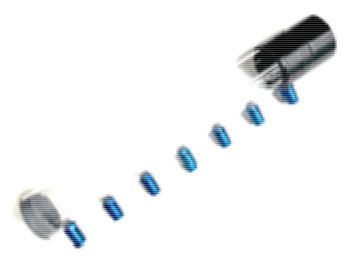

  • 650 mm straight pattern transaprent fog rake of 80 mm in ø
  • Y-pattern splitter enabling splitting of one tube into two tubes both providing pure white fog simultaneously and enabling working same time on two separate spots
  • 2 sets of flexible tube (l x ø) of 3.000 x 80 mm plus fittings
  • Tube — tube connector coupling two single tubings
  • Power cable
  • 24 months warranty
  • Ce-compliance certificate
  • User manual



ACCESSORIES

  • Аdvanced remote control for all major system & functions (on/off, switch & flash mode, fan up/down, 4-3-2-1 block run)

  • 650 mm straight pattern transaprent fog rake of 80 mm in ø

  • 1300 mm straight pattern transaprent fog rake of 80 mm in ø

  • Мedium T-pattern fog lance transaprent 1.300 x 80 mm (l x ø)

  • 250 mm broad output nozzle

  • 500 mm broad output nozzle

  • Y-pattern splitter enabling splitting of one tube into two tubes both providing pure white fog simultaneously

  • 3 m flexible tube of 80 mm in ø

  • 5 m flexible tube of 80 mm in ø

  • 10 m flexible tube of 80 mm in ø

  • Tube — tube connector coupling single tubings

  • Built in wide range power supply covering 90 . . . 264 VAC, 47 . . . 63 Hz, 5 A @ 230 VAC, 3 A @ 115 VAC buffer functionality in case of unstable power supply grids

  • LED luminaire w/adjustable spot size incl. special multi lense array (rectangular or line patterns) & higher contrast

  • Lafette/carriage with steering holm for easy handling on the job w/o lifting (for AFM18, 24 and 35)
