BACKGROUND OF APPLICATION
Cleanrooms are by no means static, but dynamic production areas in contamination critical environments. People and goods are constantly in motion. Installations, production lines and machinery do require periodical adjustment and redesign according to the specific production requirements of different types of pharmaceuticals or semiconductor products. The pertainingg standard iso 14644-3 makes it mandatory for operators of cleanrooms to give periodically evidence of the in-situ AIR FLOW situation by AIR FLOW mapping studies supported by high purity cleanroom foggers (AIR FLOW mappers).
Thanks to their minimalistic design Sistema’s two AFM FOG PISTOL models EVO.1 and EVO.2 do come with an unmatched low weight (only 974 g for the EVO.1 respectivelly 1.040 g for the EVO.2) and an extremely compact design (27,5 x 22,75 cm). Equippable with a large variety of accessories both FOG PISTOLS are providing all requirements for flow visualisation and tracking studies in cleanrooms acc. To ISO 14644-3 annex b7 enabling everything from smallest to mid scale contamination free ‘smoke studies’ and AIR FLOW mapping studies in clean rooms, sterile rooms, medical surgery rooms, iso suites, etc. with shortest setup times. both the EVO. 1 amd EVO. 2 fog pistol are battery operated and do make use of Sistema’s sterile grade visufluid as single media.
UNIQUE CHARACTERISTICS OF FOG GENERATED WITH FOG PISTOL EVO.1 AND EVO.2
- Paper white fog
- High density fog
- Long standing fog
- Zero momentum fog
- Fog generated basing on sterile grade media visufluid
- Clean, colorless, odorless, non-contaminating, residueless, requiring no wipe down
KEY FEATURES OF FOG PISTOL EVO.1 AND EVO.2
- Miniaturized, compact and low weight
- Unique zero momentum fog to cloud modulation
- 60 ml refillable tank lasting for 60 min continuous fogging
- Casing in aluminum anodized silver/cyan blue/black
- Fog generated basing on sterile grade media visufluid and hot wire technology
- Battery lasting for 60 min continuous fogging (rechargable in 60 min)
TYPICAL APPLICATIONS OF FOG PISTOL EVO.1 AND EVO.2
- Airflow recovery tests guided by ISO 14644-3 annex b12
- Airflow visualization tests guided by ISO 14644-3 annex b7
- Usp 797 in-situ airflow analysis and usp 800 compound pharmacy airflow tests
- Airflow tests for nsf 49 and bio-safety cabinets
- Airflow requirements using semiconductor clean room guidelines and guided by federal standard 209e
- Containment transport studies on process tools
- Optimization of equipment locations
- Tracking routes of air infiltration into cleanrooms
- Pressure balancing (rooms and spaces)
- Operators trainings
WEIGHT, DIMENSIONS AND AUTONOMY
| Weight, empty | 974 gramm |
| Dimensions (l x h x w) | 27,5 x 22,75 x 5,5 cm |
| Max. cycle time | 60 min of autonomy (depending to operation mode) |
| Media consumption per minute | ± 1 ml |
FP-R01 EVO.1
Minaturized cleanroom FOG PISTOL FP-R01 EVO.1
Suitable for multiple cleanroom applications
Supplying a zero momentum fog to cloud modulation
60 ml tank w/non-harming, sterile, no wipe down requiring fluid.
Offering a 60 min of autonomy per cycle (± 1 ml media consumption per min).

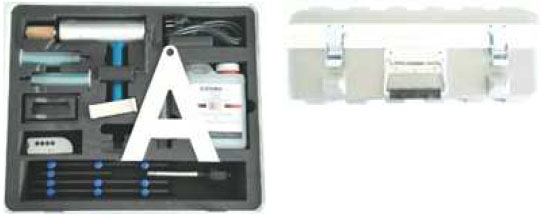

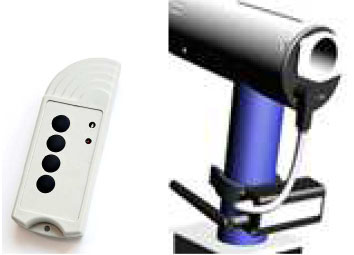

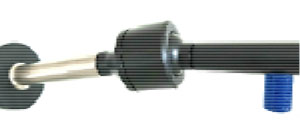

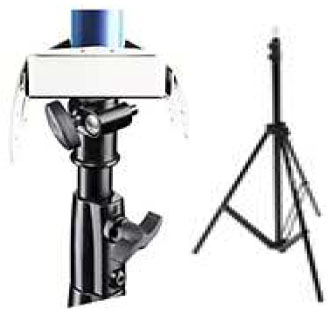

Coming w/strd. accessory package incl.
− 60 mm fog outlet element
− rechargable battery, 15v/3200mah, 48wh i battery charger 115v/230v
− 2 syringe tanks of 60 ml capacity (60 min autonomy each) i 1 filling syringe of 60 ml capacity with 2 luer-lock adapters and tube for filling/refilling
FP-R02 EVO.2
Minaturized cleanroom fog pistol FOG PISTOL FP-R02 EVO.2
Suitable for multiple cleanroom applications
Offering a 30 % higher fog output compared to the evo.1
Offering zero momentum fog to cloud modulation.
60 ml tank w/non-harming, sterile, no wipe down requiring fluid.
Coming w/strd. accessory package incl.
− 160 mm fog outlet element
− rechargable battery, 15v/3200mah, 48wh i battery charger 115v/230v
− 2 syringe tanks of 60 ml capacity (60 min autonomy each) i 1 filling syringe of 60 ml capacity with 2 luer-lock adapters and tube for filling/refilling
